Get the most from your Roborock Saros Z70 with this straightforward guide. We cover setup, cleaning strategies, maintenance, and troubleshooting tips to keep your robot vacuum performing at its best. You can read our full review of the Roborock Saros Z70.
Table of Contents
1. Initial Setup and Activation
Unboxing & Dock Placement
Find a good spot for your charging dock. Place it on a level floor with at least 0.5m clearance on both sides and 1m in front. This ensures your Z70 can dock and undock easily.
Keep the area around the dock free of cables, rugs with tassels, and small items. These can prevent the Z70 from returning home successfully.
Roborock App Configuration
Download the Roborock app from the App Store or Google Play. Sign in or create a new account.
Add your Z70 by tapping “+” → “Add Device” → “Saros Z70.” Follow the on-screen Wi-Fi setup prompts. Make sure your phone connects to the same 2.4 GHz network as the robot.
Activating the OmniGripâ„¢ Mechanical Arm
Open the app and go to Settings → Robotic Arm Settings. Toggle “Enable Robotic Arm” and confirm.
Complete activation by pressing and holding the arm-activation button combo on the Z70. This two-step process prevents accidental deployments.
Initial Mapping Pass
Run a Quick Clean to let the StarSightâ„¢ system scan your home. This builds an initial floorplan that enables zone cleaning, no-go lines, and accurate OmniGrip targeting.

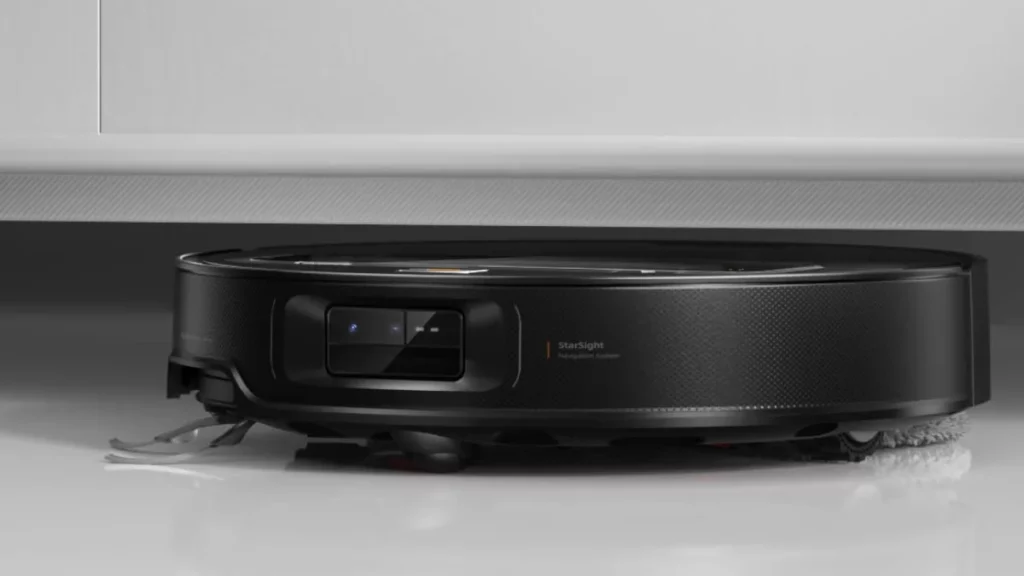

2. Smart Cleaning Strategies
Zone & Room-Based Cleaning
Draw virtual rectangles around high-traffic areas like entryways or under pet bowls. This concentrates the 22,000 Pa HyperForce® suction where you need it most.
Assign cleaning schedules for each room. Clean living areas midday when floors are clear, then bedrooms overnight. This reduces obstacles and manual rerouting.

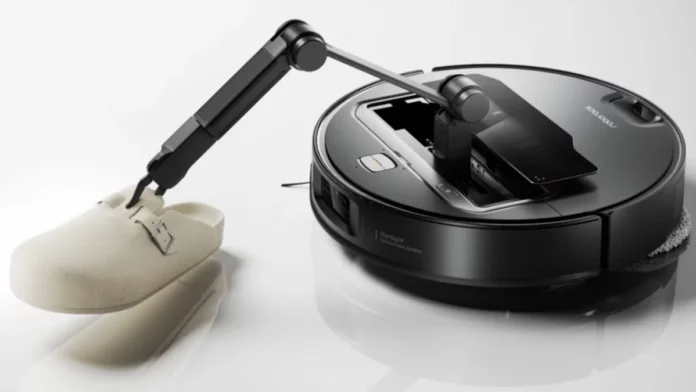

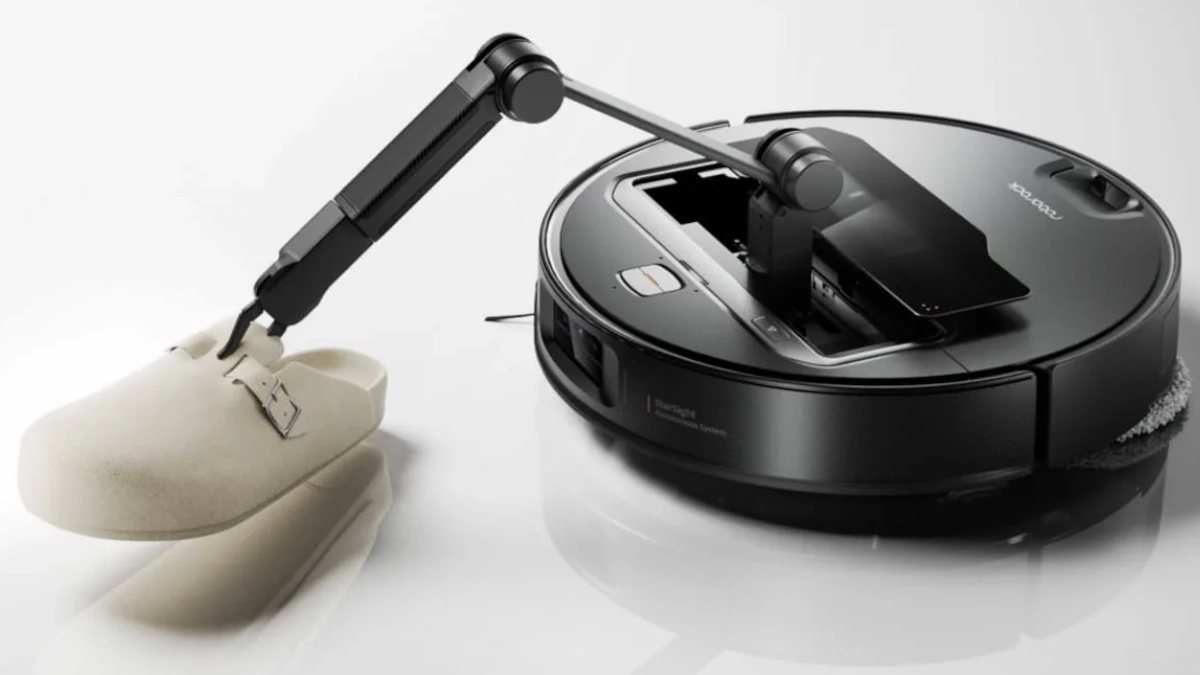

Using the OmniGripâ„¢ Arm
The arm works best with objects under 300g—like socks, paper balls, and small cables. Enable it selectively in rooms that tend to collect clutter.
Activate Child-Lock in app settings for safety around kids and pets. Use the Arm Safety Stop button on the robot for extra peace of mind.
The arm will push grippable obstacles aside after each cleaning pass. This clears the way for the main brush and mop to reach hidden areas.
Dock & Attachment Features
With the optional Multi-Functional Dock 4.0, enable Auto-Empty, Auto-Wash Mop, and Water Refill features. This creates a truly hands-off cleaning experience.
Pair with compatible Pet Cameras in the app to monitor your pets in real time while the Z70 cleans.

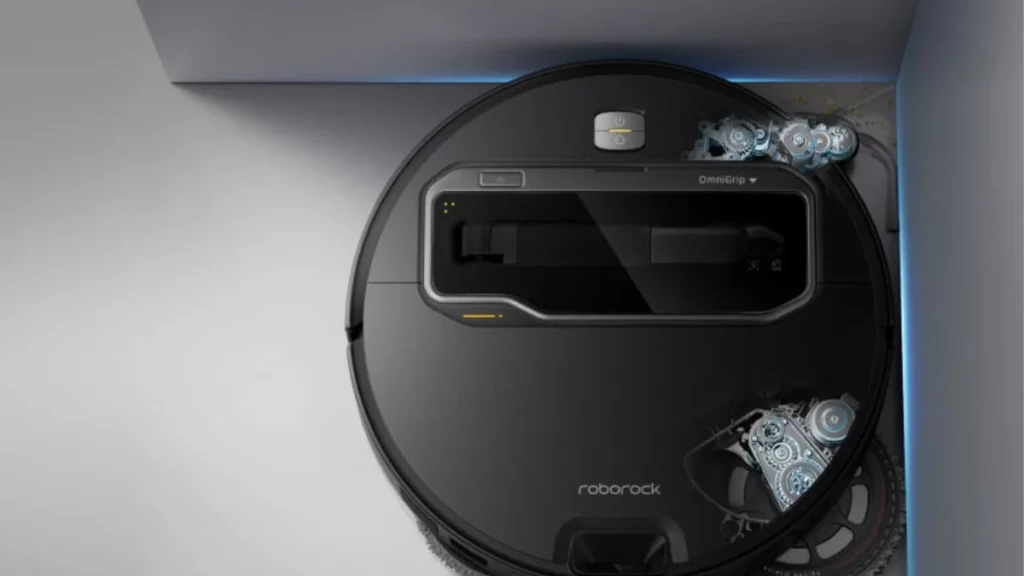

3. Maintenance Best Practices
Daily & Weekly Tasks
Empty the dustbin after every 2-3 cleaning runs. Wipe down the interior with a lint-free cloth to prevent clogs.
Rinse the main E11-rated filter weekly. Let it air-dry completely (24 hours) before reinstalling it to avoid moisture damage.
Remove hair and debris from the main brush and side brushes regularly. Check the Dual Anti-Tangle System for trapped strands.
Monthly & Quarterly Tasks
Wipe all cliff sensors, bumpers, and StarSightâ„¢ cameras with a soft microfiber cloth. This maintains mapping accuracy.
Apply a small amount of silicone-based lubricant to the OmniGripâ„¢ arm joints every 1-2 months. This ensures smooth operation.
Remove and machine-wash microfiber mop pads monthly on a gentle cycle. Skip the fabric softener to keep them highly absorbent.
Firmware & App Updates
Check for firmware updates monthly in Settings → Firmware Update. Roborock often adds new features via over-the-air updates.
Enable Auto-Update in your phone’s App Store or Play Store. This ensures you have the latest app features and bug fixes.
4. Troubleshooting Common Issues
Connectivity Problems
If your robot shows offline, check that your 2.4 GHz Wi-Fi is active. Avoid guest networks or portals that require logins.
When the app won’t find your device, power-cycle both the Z70 and your phone’s Wi-Fi. Then retry pairing within 2 meters of the dock.
Arm & Obstacle Handling Errors
If the arm doesn’t extend, confirm it’s enabled in the app. Check that it wasn’t manually folded during shipping. If still inactive, reboot the robot and retry activation.
For objects slipping from the grip, clean the rubberized pads on the end effector. Try again in a well-lit room.
Suction & Navigation Issues
If suction power drops, check for blockages in the inlet and empty the dustbin. Full bins trigger auto-power-down to protect the motor.
For mapping problems, remove reflective items like mirrors or glass tabletops from the cleaning zone. You can also enable Sensor Boost mode in app settings.

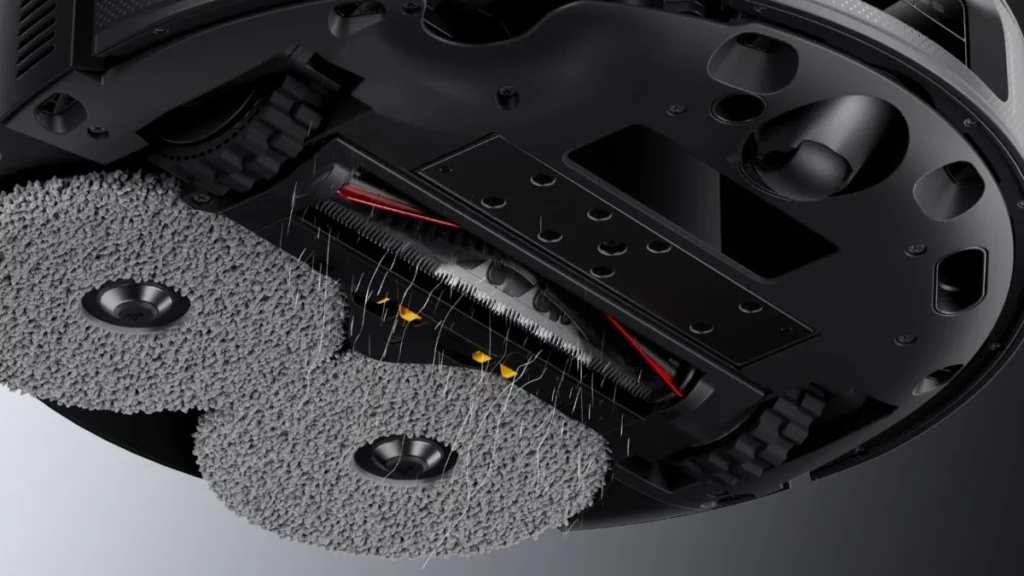

5. Advanced Tips & Tricks
Multi-Floor Management
The Z70 stores up to 4 distinct floor plans. Use Floor Selection in the app to switch when moving between levels.
Customizable Cleaning Modes
Enable Auto-Boost to let the Z70 increase suction on high-resistance areas like thick carpets or concentrated debris.
Schedule a mop-only pass after vacuuming for sticky spills. Combine with Water Edge Mode to avoid furniture legs.
Smart Home Integration
Add your Z70 to any Matter-enabled hub like Apple Home or Google Home after updating to the latest firmware. This enables unified automation.
Enable Alexa or Google Assistant skills for voice control. Start, stop, or send the Z70 home with simple commands.
6. Frequently Asked Questions
How often should I replace the filter?
Replace filters every 3-6 months, depending on pet hair and debris load. If suction decreases or the filter looks damaged, replace it sooner.
Can the OmniGripâ„¢ arm damage fragile items?
The arm applies less than 5N of force and is designed for soft objects under 300g. It won’t crush typical household items, but supervise first runs with breakables nearby.
Why isn’t my Z70 mapping correctly in low light?
StarSightâ„¢ uses dual cameras and IR sensors. In dark rooms, enable Night Vision Assist in the app or turn on some lights for better mapping.
Conclusion
Follow this guide to get the best performance from your Roborock Saros Z70. For more details on performance benchmarks, battery life analysis, and feature breakdowns, check out our in-depth Roborock Saros Z70 review.
