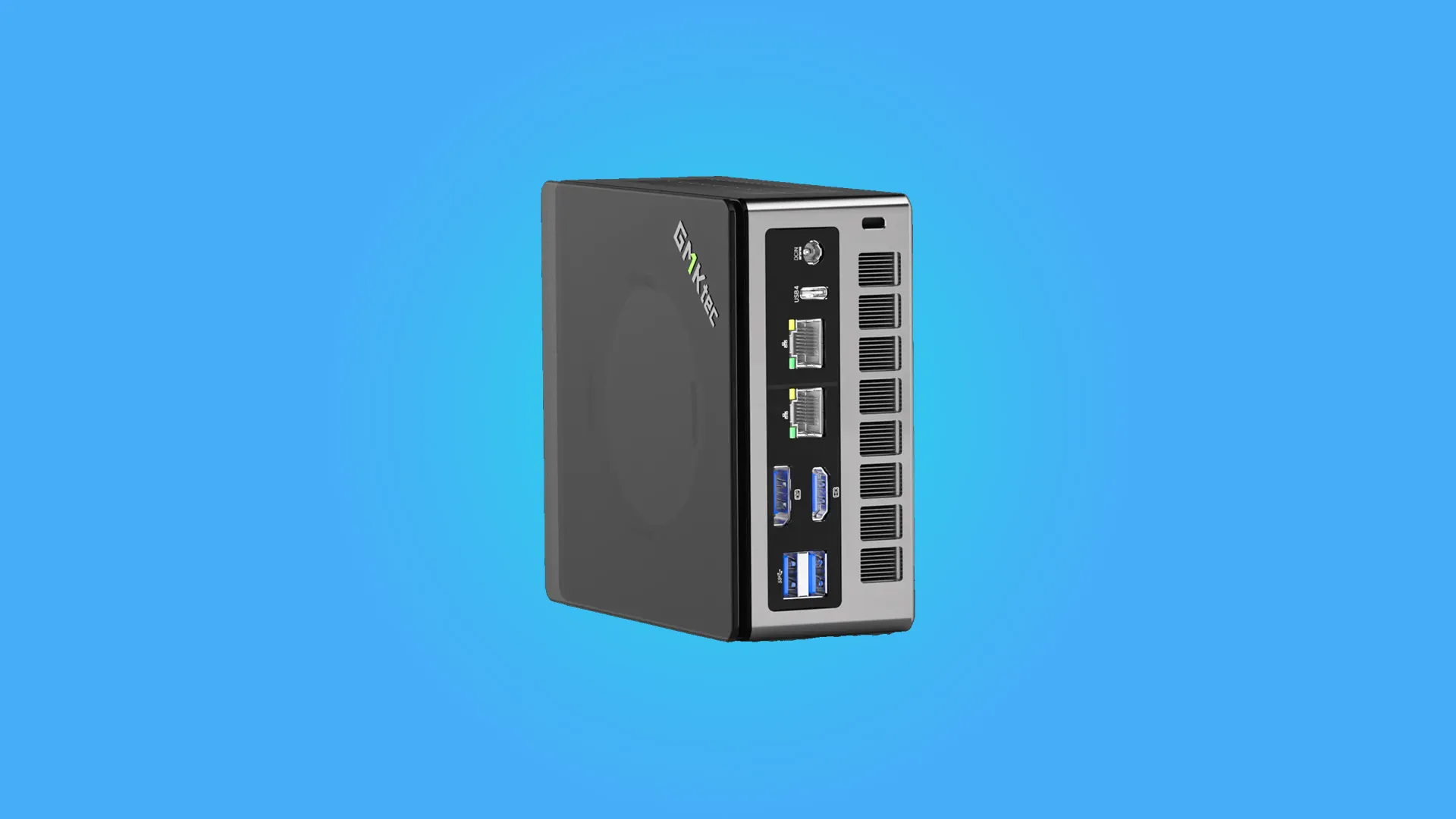

The GMKtec NucBox M7 Mini PC offers a compact solution with a performance profile close to its sibling, the GMKtec NucBox M7 Pro. Featuring the AMD Ryzen 7 PRO 6850H processor, it retains most features of the Pro version, including dual M.2 slots, dual 2.5GbE LAN ports, and an OCuLink connection for external GPU support. However, it comes with a slightly lower CPU speed and a marginally lower price tag of just $10 less than the Pro.
Overall, the GMKtec NucBox M7 provides a budget-friendly yet powerful setup for most users, though the minor price difference between the M7 and M7 Pro leaves much to consider when making a choice.
Price & Availability
Price: Starting from $300
Availability: Available for purchase on GMKtec’s official website and Amazon
The GMKtec NucBox M7 comes in multiple configurations:
- Barebones Option: Starting at $300 (£238.77 in the UK), without memory or storage.
- 16GB RAM, 512GB Storage: $389.99 in the US (£300.39 in the UK).
- 32GB RAM, 1TB Storage: $469.99 in the US (£362.01 in the UK).
Compared to the M7 Pro, the NucBox M7 costs only $10 less in its fully equipped version, making the minimal price difference difficult to justify for users not specifically seeking lower memory or storage.
GMKtec NucBox M7: Specifications
| Specification | Details |
|---|---|
| CPU | AMD Ryzen 7 PRO 6850H (8 cores, 16 threads) |
| GPU | Radeon 680M |
| RAM | 16GB DDR5-4800, expandable to 96GB |
| Storage | 512GB M.2 2280 PCIe Gen 4, expandable |
| Networking | Dual 2.5GbE LAN, WiFi 6, Bluetooth 5.2 |
| Ports | OCuLink, USB 4.0 Type-C, HDMI 2.1, DisplayPort 2.0 |
| Operating System | Windows 11 Pro (pre-installed) |
| Power Consumption | 35-70W (configurable) |
| Dimensions | 123 x 111 x 43 mm |
Design and Build
At first glance, the GMKtec NucBox M7 looks nearly identical to the M7 Pro. The compact design is sleek and minimal, with all ports and features positioned for accessibility. Unless turned upside down to reveal its branding, the M7 is virtually indistinguishable from the Pro model.
Pros of the Design:
- Easy access to internal components for upgrades
- Compact build fits small workspaces without clutter
- Durable construction with high-quality materials
While the design is convenient and well-constructed, it doesn’t bring anything new to the table for those familiar with the M7 Pro.
Features
The GMKtec NucBox M7 shares most features with the M7 Pro, including:
- Processor and GPU: The AMD Ryzen 7 PRO 6850H is only slightly slower than the Ryzen 9 PRO 6950H in the M7 Pro, providing similar multitasking capabilities with 8 cores and 16 threads. Both models use the Radeon 680M GPU.
- OCuLink Port: The M7 includes an OCuLink port for external GPU support. This feature allows for the attachment of additional graphics processing power via compatible enclosures.
- Memory and Storage: Equipped with 16GB DDR5 RAM (expandable) and a 512GB M.2 PCIe Gen 4 SSD, this Mini PC supports upgrades to meet higher memory demands.
While these features allow for robust multitasking and a moderate amount of gaming or creative work, the M7’s performance lags only marginally behind the Pro model.
Performance
The performance differences between the NucBox M7 and M7 Pro are minimal. While benchmark testing shows a slight advantage for the M7 Pro, these differences are subtle and may go unnoticed in everyday use.
| Benchmark | GMKtec NucBox M7 | GMKtec NucBox M7 Pro |
|---|---|---|
| 3DMark WildLife | 14,909 | 15,703 |
| CineBench (Single) | 1,552 | 1,570 |
| GeekBench Multi | 9,006 | 9,973 |
| CrystalDisk Read | 3,233 MB/s | 3,544 MB/s |
| PCMark 10 Office | 6,819 | 7,064 |
Highlights:
- CrystalDisk Performance: The M7’s ZettaStone CP200 SSD demonstrated superior writing speeds compared to the M7 Pro’s drive.
- Processor and GPU: The minor 100MHz base clock speed difference between the Ryzen 7 and Ryzen 9 chips doesn’t noticeably impact performance in typical tasks.
These benchmark results show that while the M7 Pro is somewhat faster in most scenarios, the NucBox M7 remains competitive.
Should You Buy the GMKtec NucBox M7?
The GMKtec NucBox M7 is a solid choice for users who need a versatile Mini PC at a slightly lower price than the Pro version, though the price gap may not justify choosing it over the M7 Pro in most cases.
Pros:
- Cost-Effective: Starting at $300, it’s a cheaper entry into the GMKtec Mini PC lineup.
- Power Efficient: Consumes less power than the M7 Pro, making it a good choice for energy-conscious users.
- Compact and Versatile: Compact size with support for 16GB RAM and 512GB storage.
Cons:
- Minimal Price Difference from Pro Model: Only $10 separates the NucBox M7 and M7 Pro in higher configurations.
- Not Ideal for Intensive GPU Tasks: While it has an OCuLink port, this connection may not satisfy users who need a more robust external GPU setup.
Verdict
The GMKtec NucBox M7 stands as an efficient Mini PC option with a small form factor and versatile features. However, for users not specifically looking for its slight advantages in power efficiency or storage configurations, the $10 difference with the M7 Pro might make the Pro model the better overall investment.
