Vakole CO20 MAX Review: Dual Motor Folding Fat Bike Tested

The Vakole CO20 MAX is a dual-motor AWD folding fat bike built for riders who want genuine all-terrain capability without giving up the option to store or transport the bike in a compact space. It has been turning heads since its torque-sensor upgrade in April 2024, and for good reason.

This complete review covers everything you need to know about the Vakole CO20 MAX, from frame construction and battery integration to real-world motor performance, comfort on mixed terrain, braking systems, app connectivity, and how it compares to its closest rivals. Whether you are a daily commuter, a weekend trail rider, or someone who needs a bike that handles both, this guide gives you the full picture before you buy.

Table of Contents

• Vakole CO20 MAX Review: Design and Build Quality
• Vakole CO20 MAX Review: Technical Specifications
• Vakole CO20 MAX Review: Performance
• Vakole CO20 MAX Review: Comfort and Handling
• Vakole CO20 MAX Review: Braking and Safety Systems
• Vakole CO20 MAX Review: User Interface and Controls
• Vakole CO20 MAX Review: Accessories and Compatibility
• Vakole CO20 MAX Review: Model Comparisons
• Final Verdict

Vakole CO20 MAX Review: Design and Build Quality

Frame and Construction

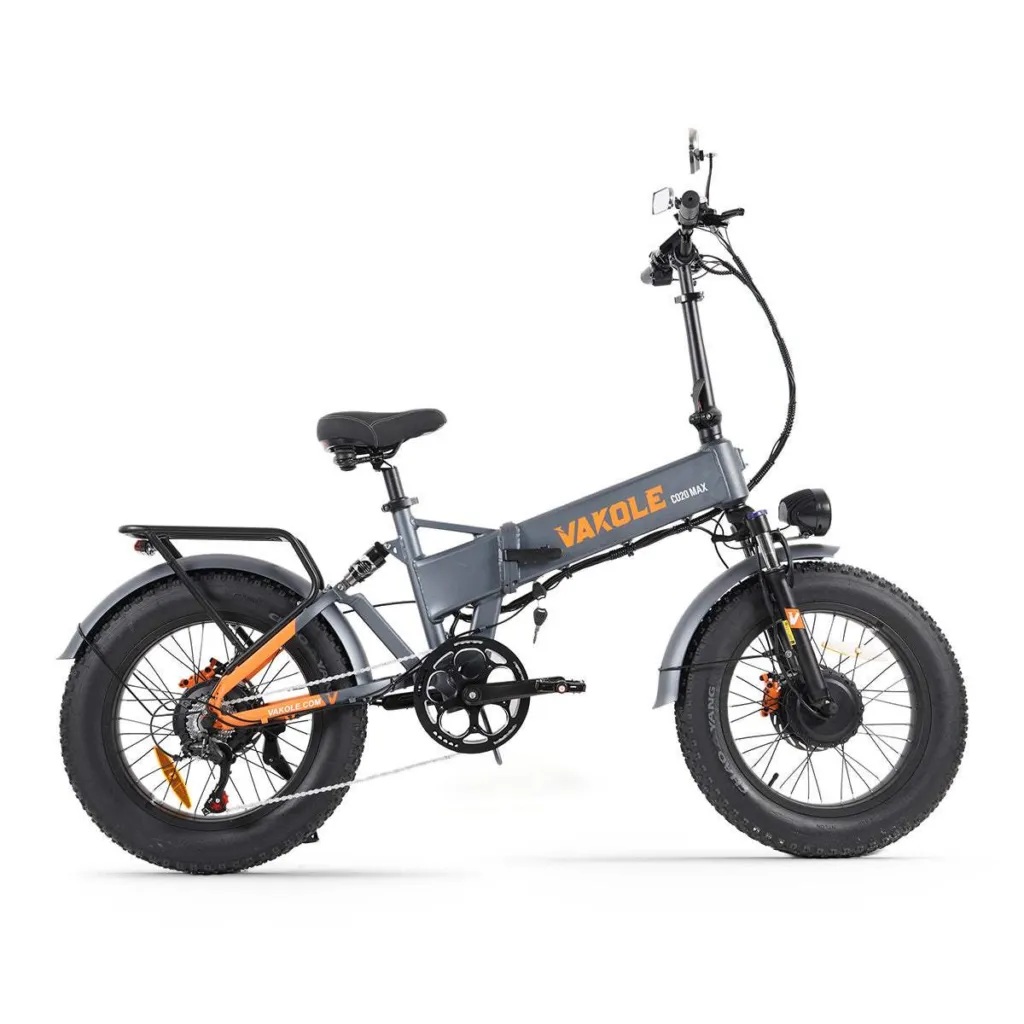

The CO20 MAX uses a 6061 aluminum alloy high step-over frame with an integrated folding hinge at the downtube. The geometry suits riders from 160 cm to 195 cm, with a minimum seat height of 84.5 cm and maximum of 110 cm. Total bike length is 178 cm with a 120 cm wheelbase, keeping it maneuverable despite the fat tire footprint. The IP65 rating protects all electronics from water jets in any direction, making it usable in rain and on wet trails without concern.

Battery Integration

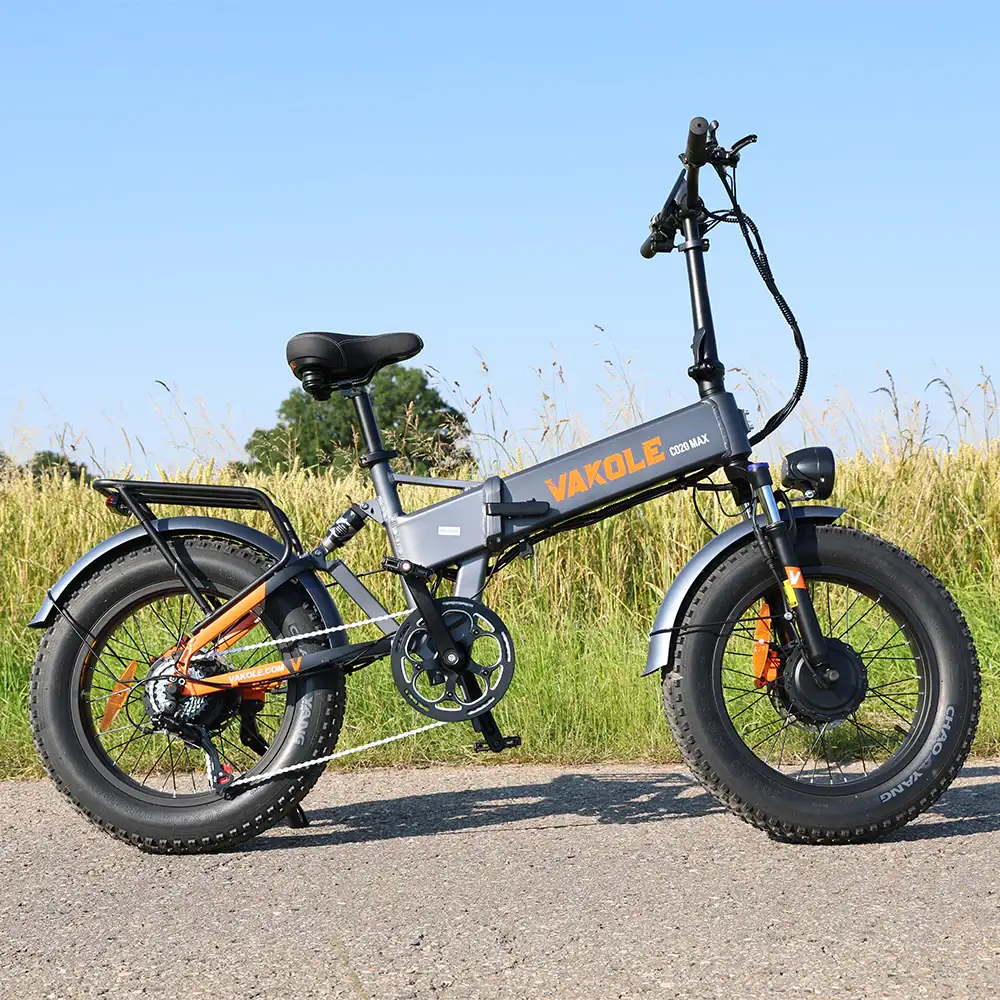

Unlike many competitors that bolt the battery to the downtube externally, the CO20 MAX integrates a 48V 20Ah (960Wh) Samsung 21700 cell pack into the frame cavity. The battery is fully removable — unlocked with the ignition key and slid out from the frame housing. This design lets you charge indoors without wheeling the entire bike to a power outlet, which matters considerably if your storage is a garage or a ground-floor hallway. The key-lock mechanism also acts as an anti-theft measure; the bike’s electrical system will not activate without the key inserted and turned.

Suspension System

Both axles get suspension: a lockable Vakole oil spring fork up front with 50mm of travel, and a Vakole oil spring rear shock also with 50mm of travel. The lockable front fork is a notable inclusion — on hard-packed tarmac or cycle paths, locking out the fork eliminates pedaling energy lost to suspension bob, and it takes a single lever click to toggle. The 20″ × 4.0″ Chaoyang fat tires with their deep-tread sidewalls add a further layer of compliance that effectively extends the functional cushioning beyond the suspension travel numbers alone.

Safety Features

KTET hydraulic disc brakes with 180mm rotors front and rear provide consistent, modulated stopping power. Integrated LED lighting runs front and rear, with a bright headlight and a taillight unit that includes functional turn signals — a feature genuinely useful in urban traffic that most bikes at this tier omit. A rear carrying handle is integrated into the frame near the seat tube, making the folded bike easier to lift horizontally for short carries.

Vakole CO20 MAX Review: Technical Specifications

The standout features of the Vakole CO20 MAX — including its dual 750W AWD motor system, 960Wh Samsung battery, and torque sensor — make it one of the most specification-dense folding fat bikes in the €1,500–€1,700 range.

Source: Vakole EU Official Specifications

Vakole CO20 MAX Review: Performance

Motor and Power Delivery

Each of the two brushless hub motors delivers 750W nominal output, combining for 1,500W of total system power — with a combined torque rating of 85 Nm in dual-motor AWD mode and 60 Nm when running the rear motor alone. The torque sensor (upgraded from the original cadence sensor in April 2024) reads the force you apply to the pedals and scales the motor response proportionally. The result is power delivery that feels like an extension of your own effort rather than a motor switching on and off independently. There is no throttle jerkiness from a standing start. On hill climbs, the transition from easy to hard pedaling brings the motors up progressively, making sustained climbs manageable at a steady pace.

Battery Life and Range

The 960Wh Samsung 21700 pack delivers real-world pedal-assist range of 80–95 km at PAS3 across mixed urban and light trail terrain for an average-weight rider. Vakole’s 120 km ceiling is achievable at PAS1 on flat ground with a light rider — reasonable as a best-case figure. In pure electric throttle mode with both motors active, budget for 55–65 km. The 4A fast charger is a meaningful advantage over competitors still shipping 2A units: a fully depleted pack returns to 100% in 5–6 hours, making overnight charging the norm rather than a two-day turnaround.

Climbing and Terrain Handling

With 85 Nm in AWD mode, the CO20 MAX handles gradients that would tax a single-motor bike at this output level. Switching from rear-only to dual-motor mode on a sustained climb above 10% grade produces a noticeable speed and effort difference — the front motor’s contribution to traction, not just power, stabilizes the bike on loose surfaces where rear-wheel slip would otherwise interrupt momentum. The 20″ × 4.0″ Chaoyang tires perform as expected on snow, sand, and packed mud, with sidewall volume doing most of the terrain-smoothing work. Dry tarmac and cycle paths are equally accessible; the fat tires roll efficiently enough that the bike does not feel sluggish on smooth surfaces despite the width.

Vakole CO20 MAX Review: Comfort and Handling

Ride Quality

Front and rear oil spring suspension with 50mm of travel at each end works alongside the 4.0″ fat tires to absorb the majority of road and trail vibration before it reaches the rider. The combination produces a noticeably cushioned ride on cobblestones, gravel paths, and packed dirt. At 50mm per end, this is not suspension designed for aggressive trail riding — it is comfort suspension designed to take the edge off daily use and light off-road excursions, and at that specific job it performs well. The lockable front fork means you lose none of the suspension benefit when you want it and lose none of the pedaling efficiency when you do not.

Ergonomics

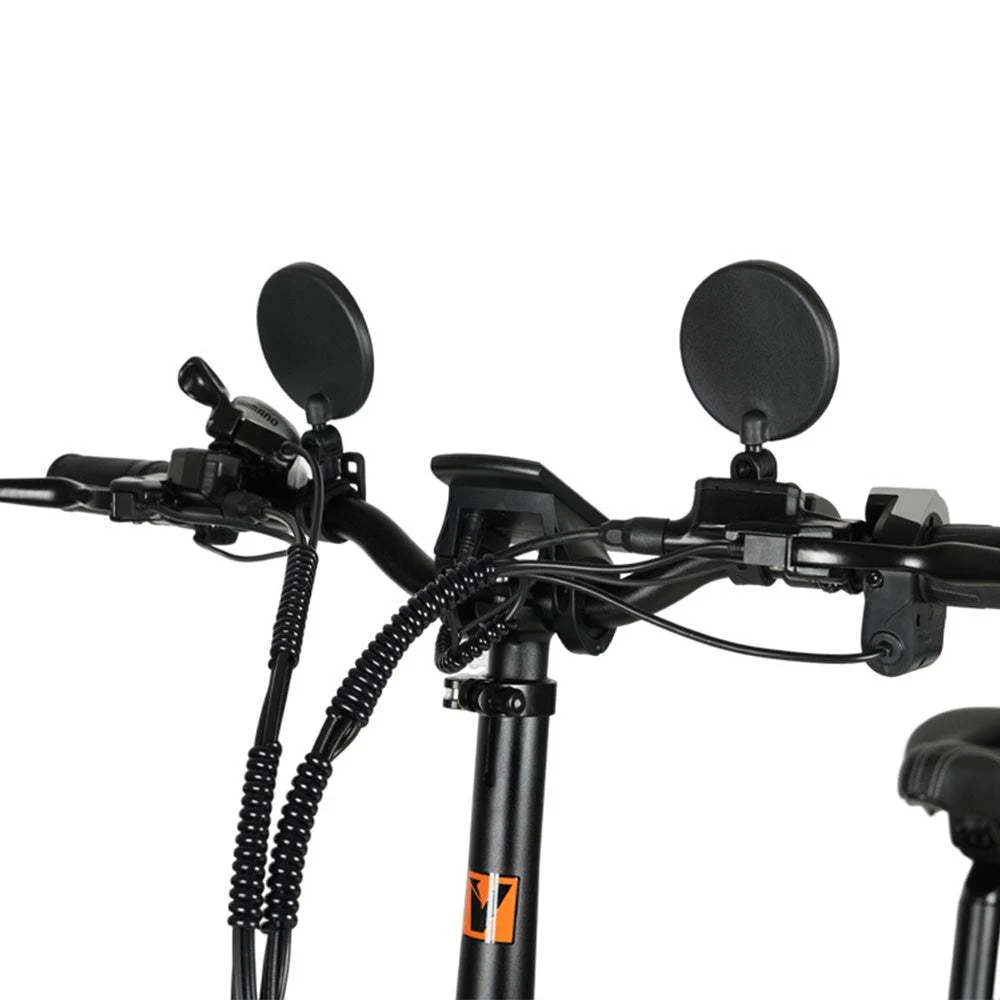

Handlebar height adjusts between 122 cm and 134 cm minimum to maximum, allowing a reasonably upright riding posture that reduces strain on the lower back during longer sessions. The oversized comfort saddle uses high-quality waterproof artificial leather with a foam decompression filling — noticeably more substantial than the thin saddles commonly found on folding bikes. The Shimano Tourney TZ 7-speed derailleur enables smooth shifts across different gradients, and the lever placement on the handlebars keeps both gear and brake controls within easy reach without repositioning hands.

Weight and Maneuverability

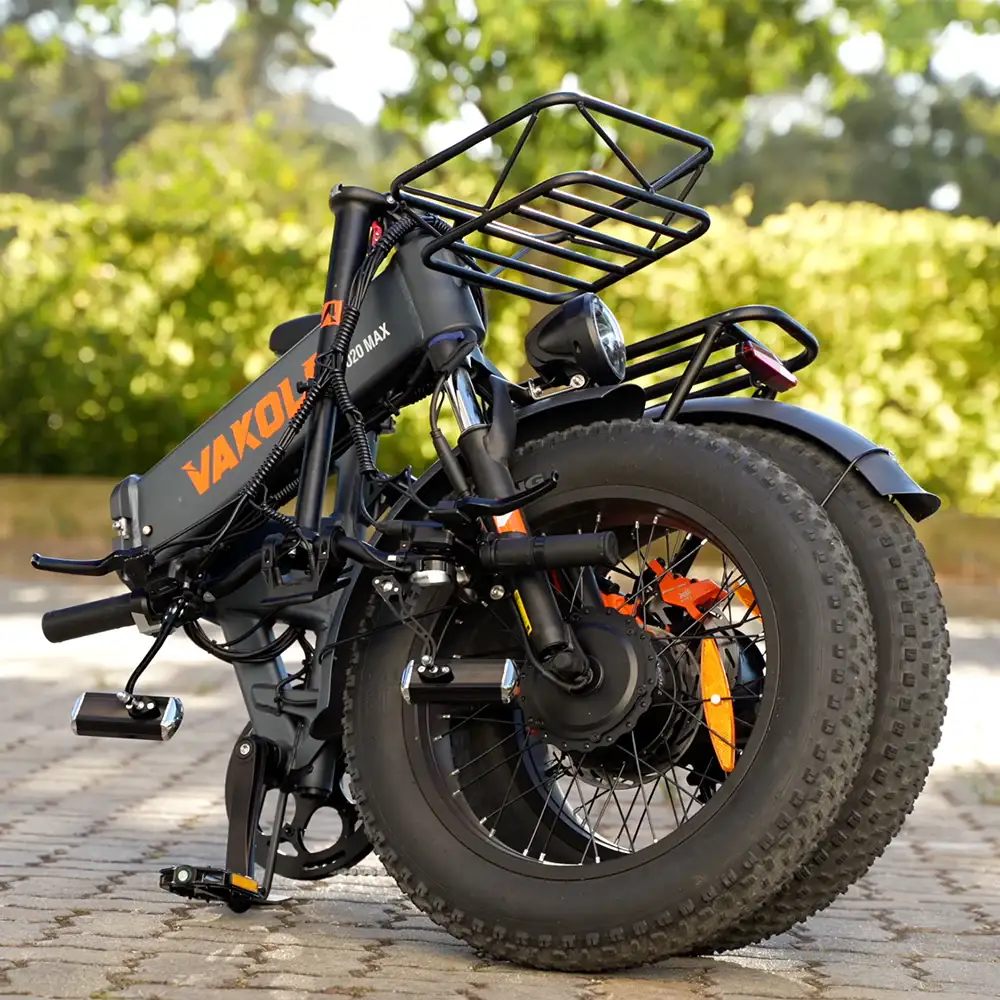

At approximately 36.7 kg with the battery installed, the CO20 MAX is heavy for a folding bike. The folded dimensions of 98 × 83 × 44 cm will fit into an estate car or van boot, and the integrated carrying handle makes horizontal lifting manageable for short distances. What it does not do is become lighter when folded. Riders with ground-floor storage, a garage, or lift access will find the weight a non-issue in daily use. Anyone planning to carry it up stairs regularly should consider this the deciding factor in their purchase decision. Maneuverability while riding is good — the 20″ wheel diameter keeps the steering responsive, and the bike does not feel unwieldy in traffic despite the wide tires.

Vakole CO20 MAX Review: Braking and Safety Systems

Hydraulic Braking

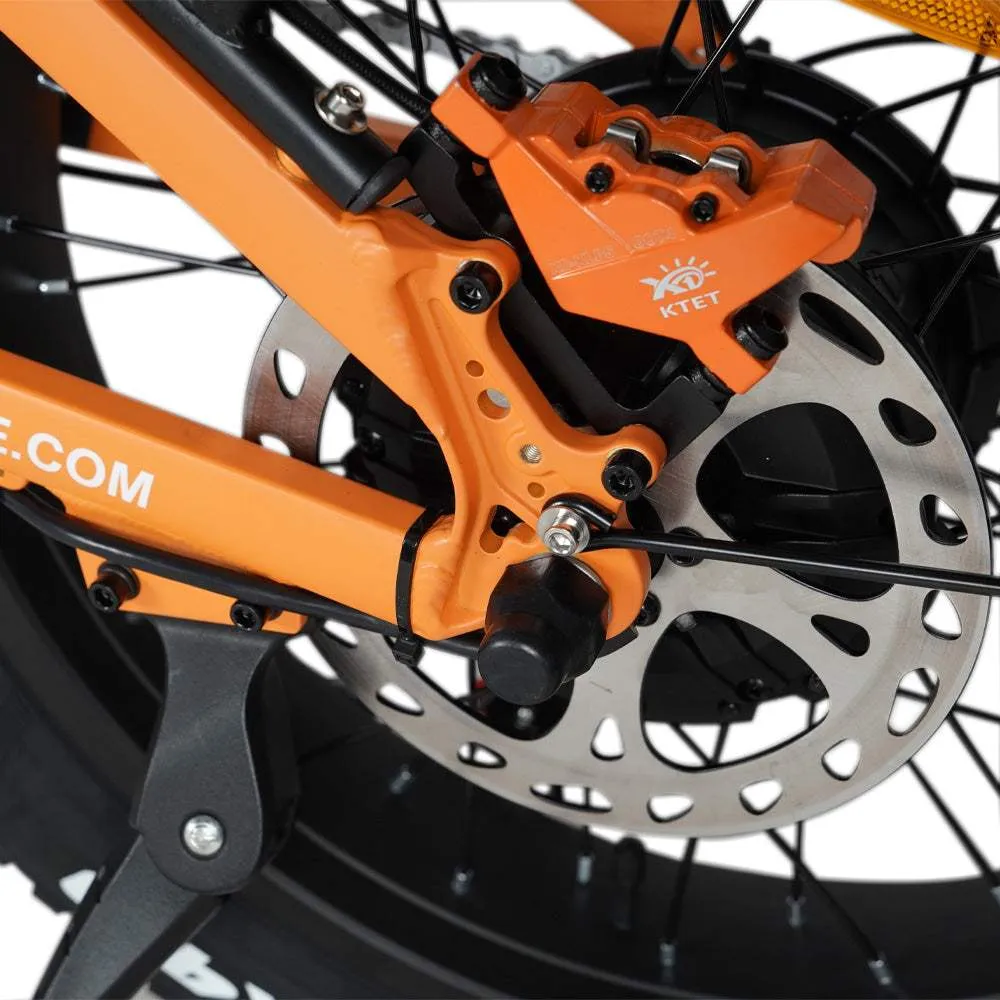

The KTET hydraulic disc brakes use a sealed fluid system to transfer braking force from the lever to the caliper, eliminating the cable stretch and pad wear inconsistencies that affect mechanical disc setups over time. The 180mm rotors provide adequate heat dissipation for a bike in this weight class on sustained descents. Brake lever feel is progressive rather than on/off — useful for modulating speed on loose terrain where locking the wheel would cause a skid. Hydraulic systems on bikes in this category are frequently underspecified; the KTET units on the CO20 MAX are not a weak point.

Integrated Lighting

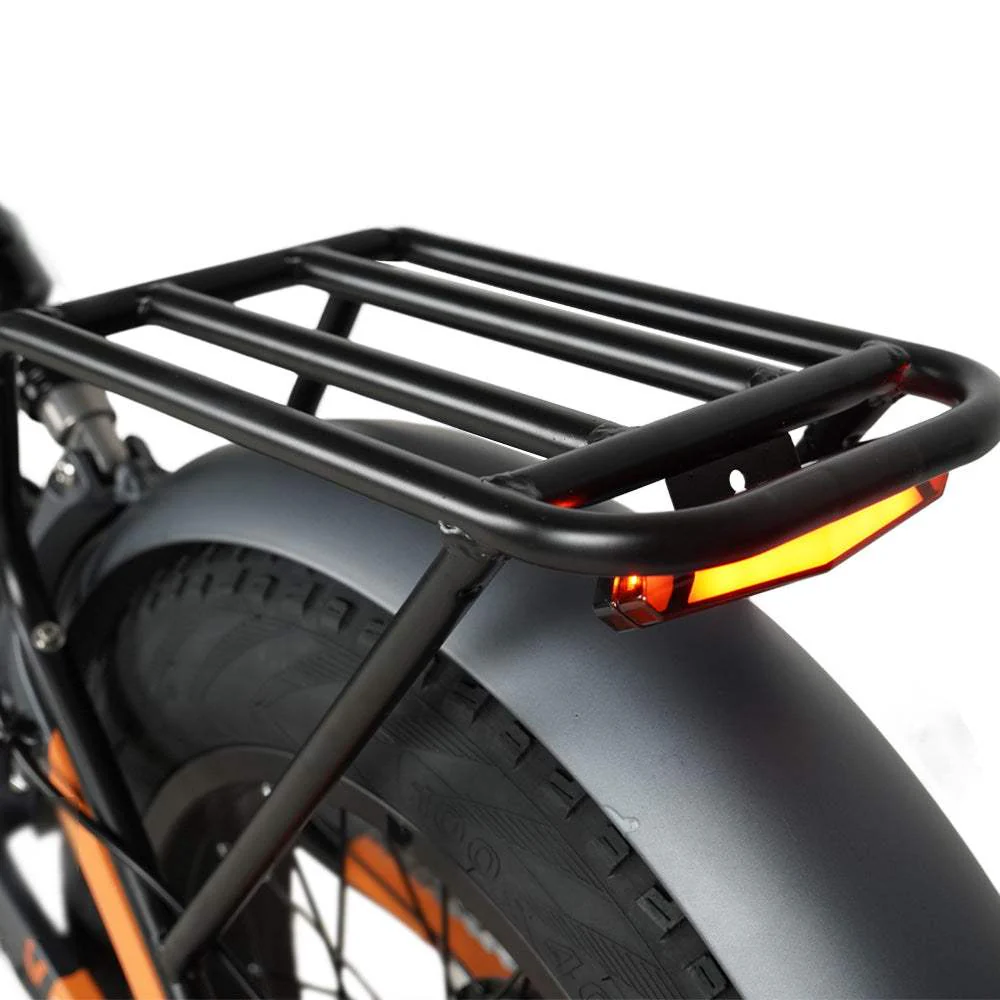

The LED headlight provides adequate forward visibility in low-light conditions. The rear unit incorporates both a brake light — activated by the hydraulic brake levers — and functional left/right turn signals operated from a handlebar-mounted switch. The turn signals are genuinely useful in urban environments and on shared paths, and their inclusion in the standard build rather than as an optional upgrade is a practical advantage over most competitors at this price. All lighting is powered from the main battery, so there are no separate cells to replace.

Vakole CO20 MAX Review: User Interface and Controls

Display and Controls

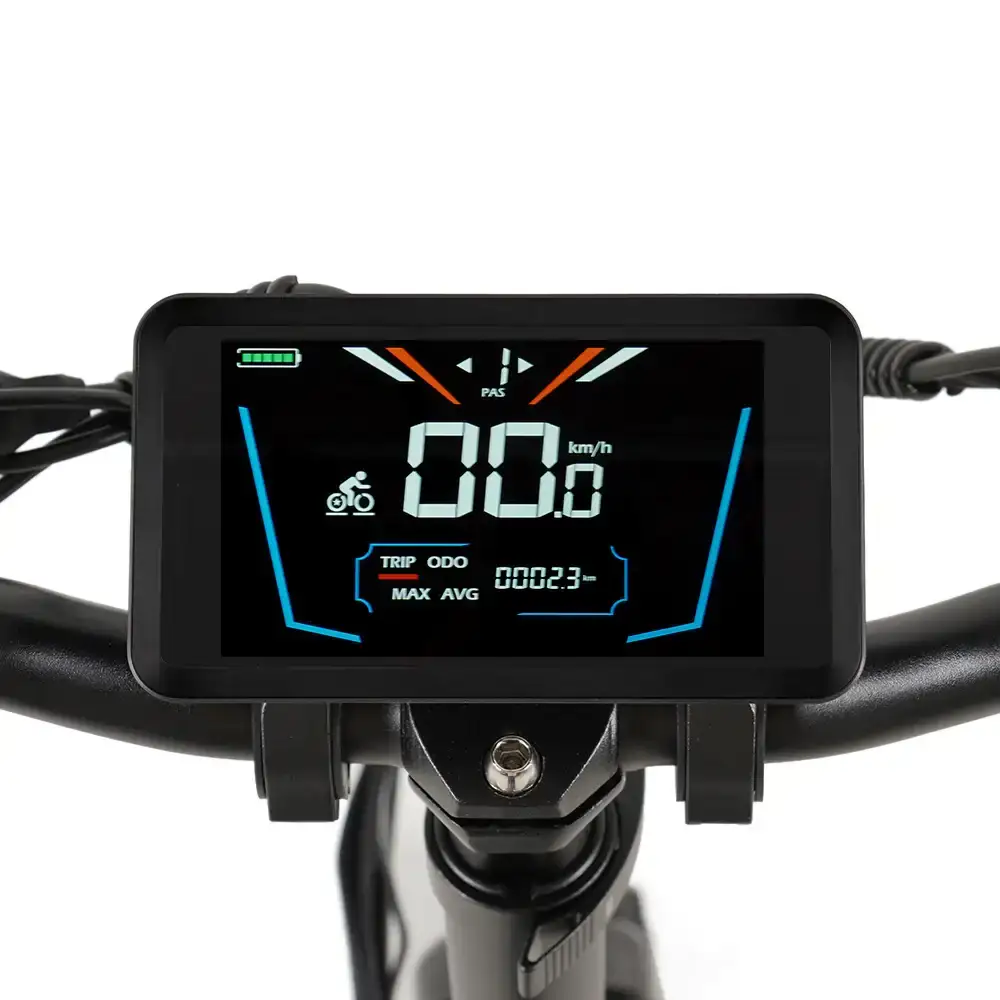

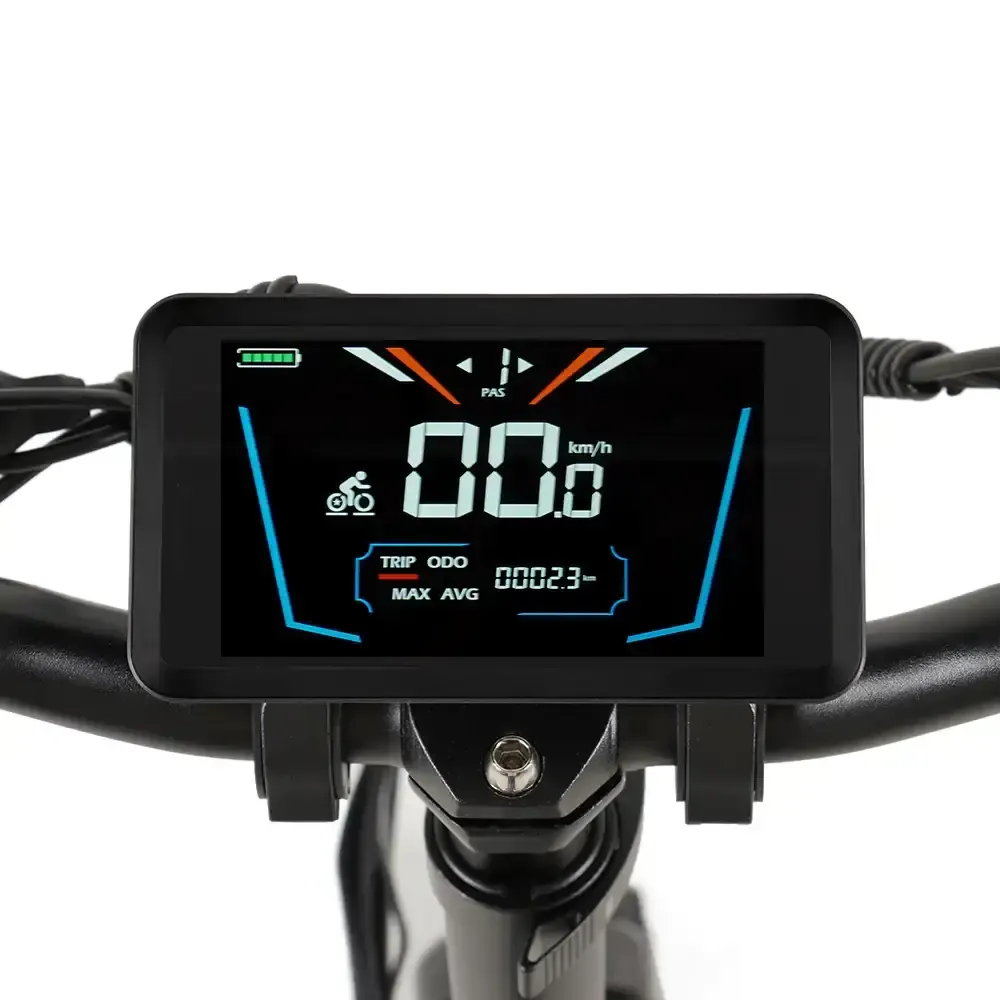

The YOLIN 91F-E colorful LCD display shows speed, battery level, trip distance, total odometer, current PAS level, and ride mode. The “+” and “–” buttons adjust pedal-assist level between the five available settings; a single press of the “i” button cycles between rear-only, front-only, and dual-motor (AWD) modes — a control that is used frequently enough that its prominent placement on the handlebar controller makes practical sense. The display is readable in most conditions, though direct overhead sunlight can wash out the screen in the same way it affects most color LCDs at this brightness level.

Connectivity and App

The CO20 MAX is compatible with the Key-Disp app over Bluetooth, which allows remote adjustment of wheel diameter, motor parameters, PAS sensitivity thresholds, and speed limit settings without navigating the on-display menus. For iOS users, the app also provides GPS position tracking, which functions as a basic theft-deterrent and ride-logging tool. Android users have full access to the configuration functions but no GPS tracking — a gap that Vakole has not addressed in over twelve months of production with the torque-sensor hardware. If you are on Android and GPS matters to your ownership experience, this is a meaningful limitation to account for before purchasing.

Vakole CO20 MAX Review: Accessories and Compatibility

Included Equipment

The CO20 MAX ships with the 56.4V 4A fast charger, ignition key set, a basic toolkit for assembly, and a user manual. A rear rack is integrated into the frame design. The bike does not include a derailleur guard, fenders, or a phone mount — standard omissions in this category that add up to around €30–€40 in aftermarket accessories you will likely want within the first month of ownership.

Compatible Upgrades

Standard 20″ e-bike accessories fit without modification: a front basket, waterproof panniers for the rear rack, clip-on fenders for muddy-season riding, and a handlebar phone mount for navigation. A derailleur guard compatible with Shimano Tourney geometry is a recommended early addition. For maintenance, keep a bleed kit for the hydraulic brakes on hand — hydraulic systems rarely need bleeding in normal use, but having the kit available saves a workshop visit when the time comes. Spare Chaoyang 20″ × 4.0″ inner tubes are worth having in reserve, as fat tire tubes are not always available in local shops.

Vakole CO20 MAX Review: Model Comparisons

CO20 MAX vs Vakole CO20 (Original)

Key Differences: The MAX is the meaningfully upgraded variant — larger battery, torque sensor, hydraulic brakes, faster charger, and app connectivity justify the price premium over the original CO20 for any rider who uses the bike regularly. The 5–6 kg weight increase is the only tangible trade-off.

CO20 MAX vs Lankeleisi MG600 Plus

Key Differences: The MG600 Plus offers a longer real-world range and the larger 26″ wheel diameter for faster rolling speed on tarmac, but it does not fold and costs notably more. The CO20 MAX wins on AWD torque, portability, and value. For riders whose routes genuinely require the folding function or who prioritize the AWD traction advantage on steep or loose terrain, the CO20 MAX is the stronger choice. For flat-to-moderate urban commuting with maximum range priority, the MG600 Plus has an edge.

Final Verdict

The Vakole CO20 MAX occupies a specific and well-defined position in the electric bike market: a folding fat-tire bike with genuine AWD capability and a 960Wh battery that can handle snow, sand, mud, and tarmac without asking you to choose between them. The torque sensor upgrade that arrived in April 2024 turned what was already a capable machine into a considerably more natural and enjoyable ride. The KTET hydraulic brakes, fast 4A charger, and integrated turn signals complete a package that punches above its price tier on hardware quality.

The weight is not a selling point and should not be minimized — 36.7 kg is serious, and any purchase decision should account for your real storage and transportation situation. The iOS-only GPS restriction on the Key-Disp app is a frustration for Android users that Vakole should have resolved by now. Neither issue undermines what the bike actually does well on the road and trail. For riders with varied routes, some elevation, and ground-level storage, the Vakole lineup offers a model for almost every riding profile — and the CO20 MAX is the right call when folding storage and AWD traction are both non-negotiable requirements.
