Incredible Fix: Drill Restores AMD RX 6900 XT Graphics Card

Expertly Restored: Amazing Fix for Broken High-End AMD Card

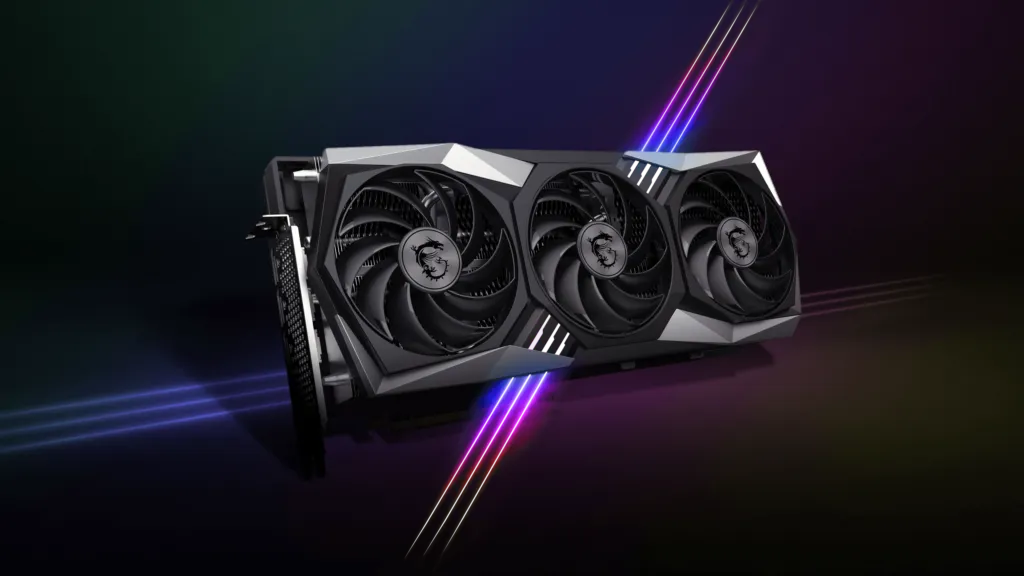

AMD RX 6900 XT Graphics Card
(Image: MSI)

Dealing with a broken graphics card, especially a pricier model that can result in substantial losses, has potential solutions that might surprise you. Take, for instance, the unconventional approach of drilling a hole into the card itself.

In a recent case involving a malfunctioning MSI Radeon RX 6900 XT, a resourceful repair specialist and YouTuber known as KrisFix, operating a German repair shop and gaining recognition for highlighting AMD GPU issues, undertook a unique strategy. This involved drilling a couple of holes into the graphics card’s board to effect a repair.

According to a report by Tom’s Hardware, the afflicted RX 6900 XT exhibited some functionality, such as powering on, with operational fans and lights, but unfortunately failed to display any output on the connected monitor.

KrisFix diagnosed the issue as a broken ‘trace,’ a minuscule wiring connection between the GPU chip and a memory module.

The solution required drilling two holes (due to the trace’s location deep within the board) to facilitate the soldering of a wire, effectively reestablishing the connection between the memory chip and the GPU. Following the successful procedure and the subsequent cleanup, KrisFix managed to restore the functionality of the RX 6900 XT.

It’s worth noting that encountering such an unusual graphics card problem is a rarity, making both the issue itself and the repair process quite exceptional.

Insightful Analysis: An Intricate Repair Endeavor

Naturally, this isn’t a task for DIY experimentation. The meticulousness required for such a repair is highly precise. Soldering necessitates microscopic work, and the drilling process demands painstaking manual execution, magnifying its exceptional nature.

This repair revelation underscores its eye-opening nature, coupled with the subsequent essential cleanup to address inevitable collateral consequences. Tom’s Hardware notes KrisFix’s need to resolder damaged capacitors and mend scratched traces atop the board post new trace implementation.

KrisFix emphasizes, ‘Critical precision governs the length of this repair’s trace. Margins for error are minute. Accuracy in length dictates proper timing, enabling the card to function at high frequencies.’

The overall accomplishment is truly extraordinary, demonstrating the ability to salvage severely impaired GPUs. This news is a relief for individuals who’ve invested significantly in graphics cards, now capable of extending their lifespan.

Moreover, the positive ecological impact cannot be overlooked. Sustaining the longevity of PC hardware aligns with environmentally conscious practices. Remember, when considering a new GPU, explore our recommendations for top graphics cards.
